Shma Company Limited

Project Information
Name of Project: Lupin Research Park

Client: Lupin Limited
Category: Institution
Location: Pune,India
Design Period: 2015-2016
Completion Year: 2017
Site Area:
Collaborators:
Photographer: Wison Tungthhunya
Awards:

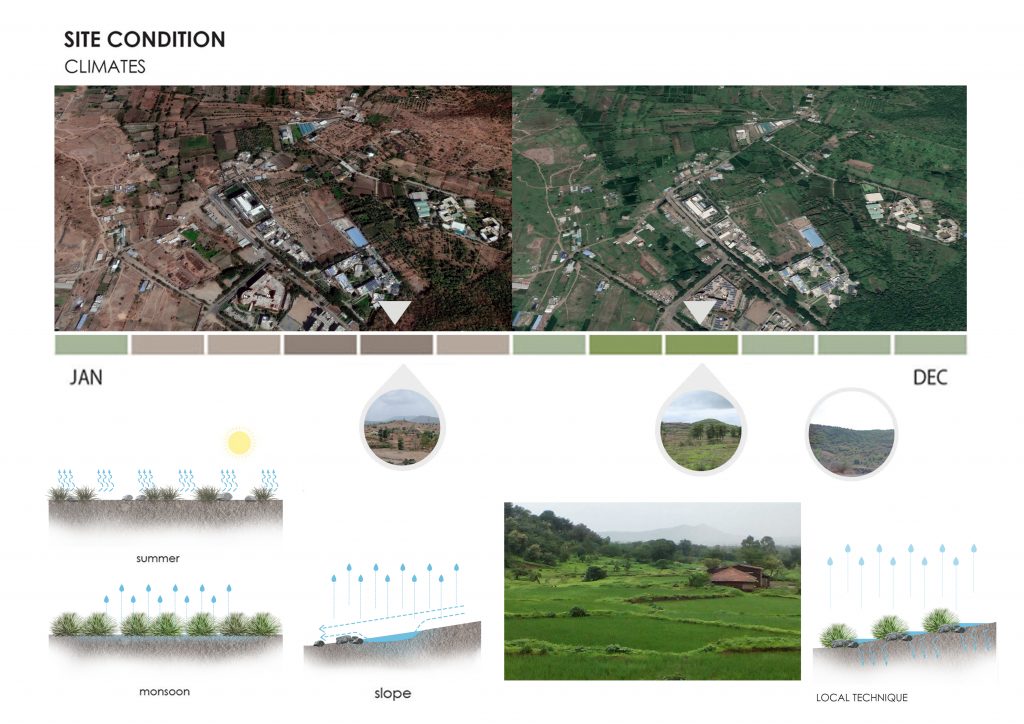

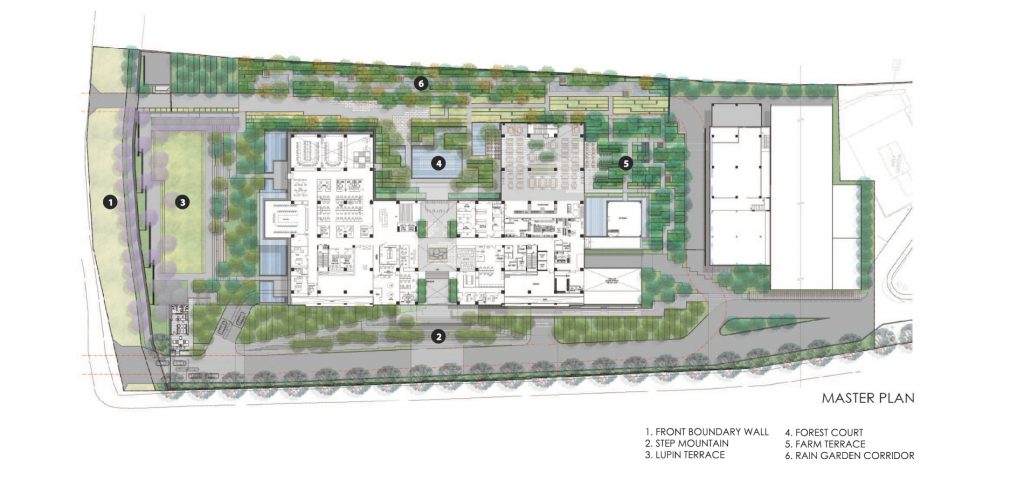

Based on understanding of both local farmer’s wisdom and natural forest ecological formation in the valley, a sustainable landscape concept is proposed by 2 landscape strategies; Stepping Terrain and Rain Corridor, are employed throughout 5 landscape areas.



Step Mountain

To negotiate drastic level changes from road level to 1st floor building entrance, ground step is being introduced. Main pathway from the pedestrian entrance starts from one side of the grand step, slowly ramped up cutting across the step to form a mountain shape. The ramp is also doubled up as handicap access. Local tree groves and contrasting shrubs grow through part of the steps to soften the hardscape elements.

Lupin Terrace

A big open space of green lawn is created in front of the building where grand meeting room is located which is a provision for mass gathering and major events of Lupin. Traditional space between the grand meeting room and the lawn including reflective pond, flowering meadow, and amphitheater terrace, which together form a nice cooling space that sometimes will be used for a training session. The lawn is terminated with series of staggering retaining wall that also function as front feature walls when being seen from the public roadway next to the lawn, and space between buildings.

Forest Court

Surrounded by building on 3 sides, the courtyard is well protected from the harsh sunlight and wind making it an ideal sitting area all day long. Pockets of sitting area are distributed amongst group of trees surrounded by large expand of reflective pond. Interactive fountains are operated during the day to further enhance the microclimate.

Farm Terrace

Adjacent to the canteen spaces at the back of the building, the landscape design of the area is crafted to reflect the agricultural pattern. Edible plants are placed with long lunch communal tables topped with trees to invite people to gather and share quality time amidst lush surrounding. This emphasizes the connotation of blurring the line between inside and outside space and how they can become one while foster an interaction between employees to their nature and workplace.

Rain Garden Corridor

Along the site boundary, dense layers of trees varied in size and species are created to compose a forest-like backdrop for the campus. A path meandering through the forest allows a quiet strolling amidst natural setting. Series of timber cabanas along the path provide private gathering space among colleagues. In order to sustain the dense greenery with less watering, the entire area is made lower to receive the run-off rainwater from the entire site including the roof drain from the building. PVC-based perforated tanks are constructed along the path to collect the water during monsoon season, and slowly release the excess water to adjacent dried-up soil underground through osmosis reaction during dry season. This becomes a rain garden that is naturally dampen all year round. This flood mitigation system should be unusually high precipitation happened.
